View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0000203 | WoR-PE installer / package | General | public | 2024-03-23 21:07 | 2024-03-23 21:07 |
| Reporter | dlee | Assigned To | |||
| Priority | normal | Severity | major | Reproducibility | always |
| Status | new | Resolution | open | ||
| Platform | Rasberry Pi 5 | OS | Windows 11 | OS Version | 23H2 |
| Product Version | 1.1.0 | ||||
| Summary | 0000203: WoR PE boot and failed on DiskPart script | ||||
| Description | Running latest WoR Flasher with Raspberry Pi 5 and build the Windows 11 NVMe boot drive. H/W used S/W | ||||
| Steps To Reproduce | Use WoR Flasher to build the boot NVMe Failed with error Virtual Disk Service error: 2024-03-16 03:50:12.6225 [warn] Exit code: -2147212265 | ||||

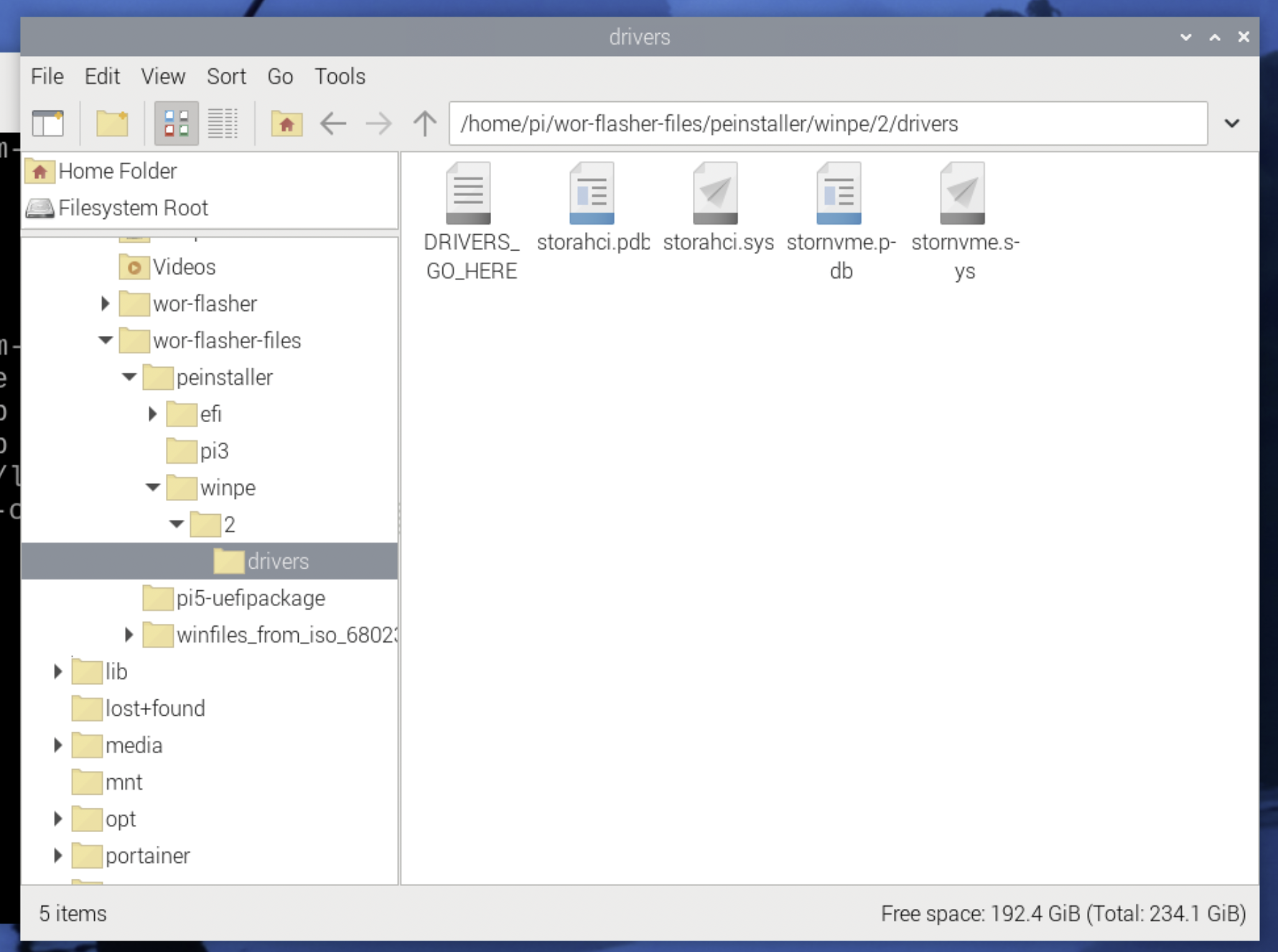

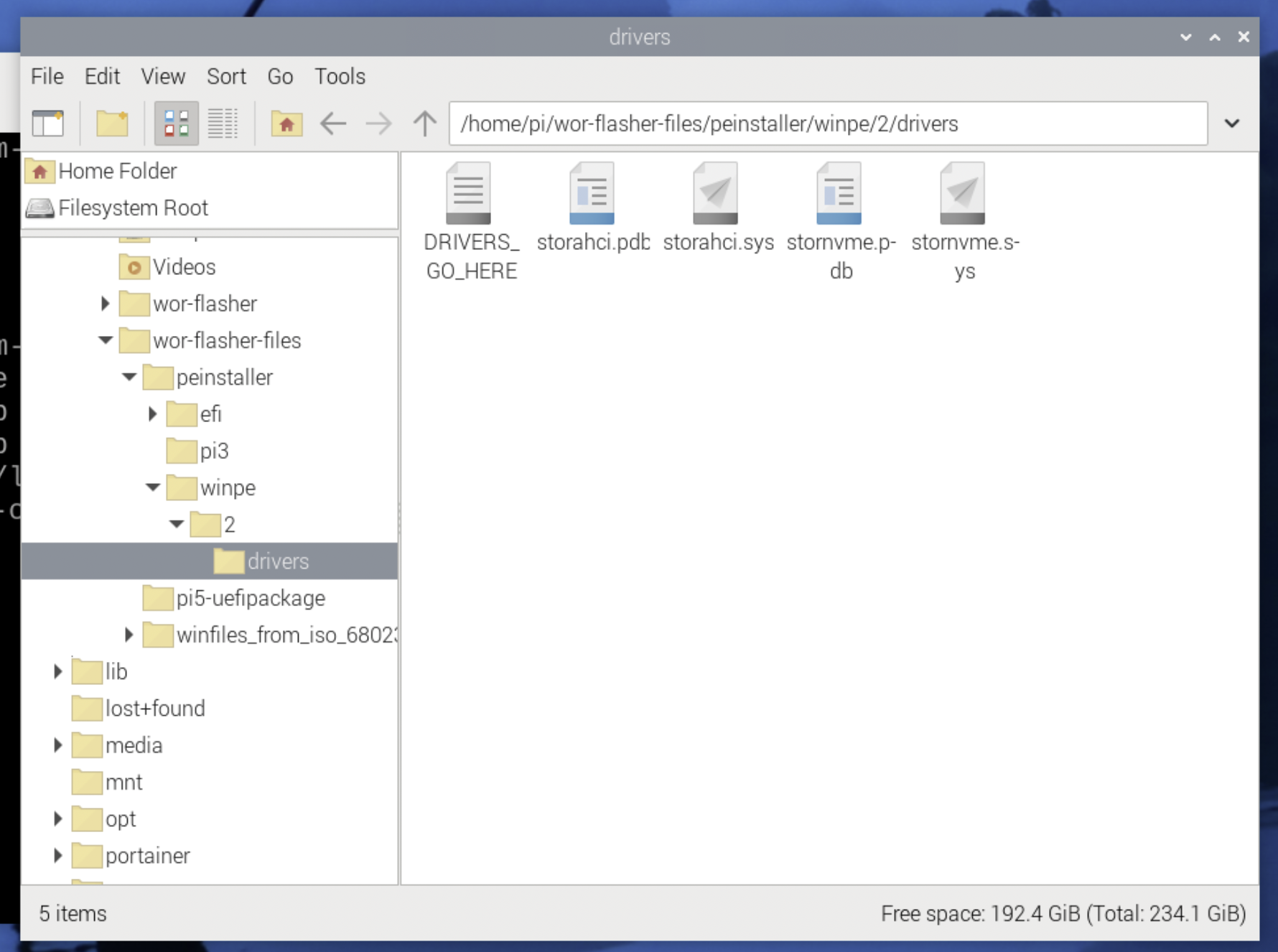

| Additional Information | WoR-PE log attached Also tried to inject the storage_v4.zip drivers into the build still have the same issue. attached a screen caption to show | ||||
| Tags | Raspberry Pi 5, Windows 11 | ||||
 |
WoR-PE.log (2,800 bytes)
2024-03-16 03:49:50.8534 [info] WoR-PE (version 1.1.0.0) 2024-03-16 03:49:50.9169 [info] Copyright © 2018-2022 Mario Bălănică. All Rights Reserved. 2024-03-16 03:49:50.9169 [info] OS: Windows (TM) 10 Preinstallation Environment ver 2009 (22621.2506.arm64fre.ni_release_svc_prod3.231018-1809) 2024-03-16 03:49:50.9169 [info] System model: Raspberry Pi 5 Model B 2024-03-16 03:49:50.9169 [info] Device display short name: Raspberry Pi 5 Model B 2024-03-16 03:49:50.9586 [debug] Loaded configuration file: 2024-03-16 03:49:50.9586 [debug] PreferredImageEditionId: Professional 2024-03-16 03:49:50.9870 [info] Loading driver list... 2024-03-16 03:49:50.9870 [info] Drivers loaded successfully! 2024-03-16 03:49:55.0949 [info] Loading disks... 2024-03-16 03:49:55.5823 [info] Disk 0 - BC901 NVMe SK hynix 256GB - Fixed hard disk media - 238 GB 2024-03-16 03:49:55.5823 [info] 1 disk(s) found 2024-03-16 03:49:55.5876 [info] Finding PE disk... 2024-03-16 03:49:55.5876 [info] Mounting partitions on disk 0... 2024-03-16 03:49:55.6156 [debug] Creating diskpart script with the following commands: select disk 0 , select partition 1 , assign letter=A , exit 2024-03-16 03:49:55.6237 [debug] Launch diskpart.exe with the following arguments: /s "X:\diskpart.script" 2024-03-16 03:49:56.9811 [debug] diskpart.exe process output: 2024-03-16 03:49:56.9811 [debug] Standard output: Microsoft DiskPart version 10.0.22621.1 Copyright (C) Microsoft Corporation. On computer: MINWINPC Disk 0 is now the selected disk. Virtual Disk Service error: The disk is not initialized. 2024-03-16 03:49:56.9811 [warn] Exit code: -2147212265 2024-03-16 03:49:56.9811 [warn] Couldn't mount the partitions! 2024-03-16 03:49:56.9811 [error] Couldn't find the PE disk! 2024-03-16 03:50:12.5164 [info] Loading disks... 2024-03-16 03:50:12.5355 [info] Disk 0 - BC901 NVMe SK hynix 256GB - Fixed hard disk media - 238 GB 2024-03-16 03:50:12.5355 [info] 1 disk(s) found 2024-03-16 03:50:12.5355 [info] Finding PE disk... 2024-03-16 03:50:12.5355 [info] Mounting partitions on disk 0... 2024-03-16 03:50:12.5355 [debug] Creating diskpart script with the following commands: select disk 0 , select partition 1 , assign letter=A , exit 2024-03-16 03:50:12.5528 [debug] Launch diskpart.exe with the following arguments: /s "X:\diskpart.script" 2024-03-16 03:50:12.6225 [debug] diskpart.exe process output: 2024-03-16 03:50:12.6225 [debug] Standard output: Microsoft DiskPart version 10.0.22621.1 Copyright (C) Microsoft Corporation. On computer: MINWINPC Disk 0 is now the selected disk. Virtual Disk Service error: The disk is not initialized. 2024-03-16 03:50:12.6225 [warn] Exit code: -2147212265 2024-03-16 03:50:12.6225 [warn] Couldn't mount the partitions! 2024-03-16 03:50:12.6225 [error] Couldn't find the PE disk! |
